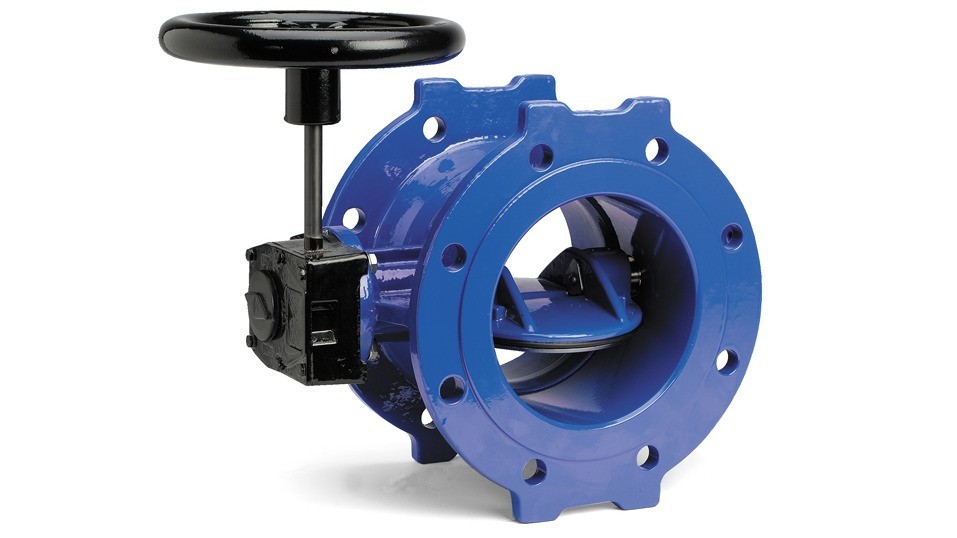

AVK double eccentric butterfly valves with tilted disc are designed for easy operation and long service life. The disc seal is made of AVK’s drinking water approved EPDM rubber featuring an excellent compression set and ability to regain the original shape. The high quality epoxy coating and fully encapsulated shaft/disc connection ensure optimal corrosion protection and durability.
FEATURES
– Double eccentric design releases seal compression after only few degrees of opening resulting
in low operating torque
– Disc firmly fixed to the shaft to prevent fluttering and a slight tilt allows for precise adjustment
of the closed position
– Disc seal profile and rubber quality ensure low closing torque
– All rubber parts drinking water approved by multiple institutes
– Fasteners in stainless steel, A2
– Stainless steel shaft and seal retainer ring
– Machined and epoxy coated ductile iron seat integrated in the body
– All threaded connections are sealed with O-rings for protection against medium and
environment
– Radial bearings in self-lubricating PTFE/bronze composite
– Shaft ends fitted with an end cover that keeps the shaft in position against system pressure and
seals the disc interior against corrosion
– Replaceable shaft seals with two EPDM O-rings; gaskets to the exterior in hydrocarbon resistant
NBR
– Coated with blue RAL 5017 FBE to DIN 3476, GSK and approved by WRAS-DVGW/W270/UBA,
250µm
– Drinking water approved by DVGW and WRAS, drinking water approved by KIWA
